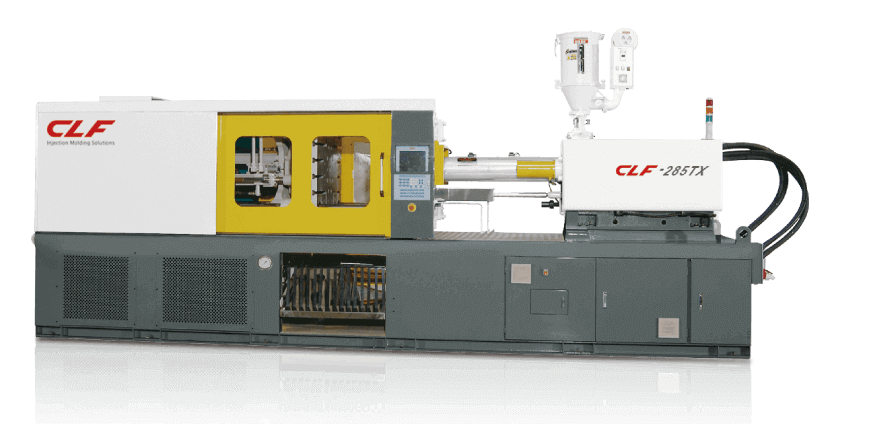

High Speed Injection Molding Machine
CLF TX Series – CHUAN LIH FA | 60 – 1400 Tons Clamping Forces | Fast Mold Opening/Closing | Large Platen Size
Established in 1966, CLF Machinery is a leading Taiwan-based manufacturer of plastic machinery, with over 60 years of industry experience. Renowned for its engineering excellence and long-standing reputation, CLF has grown into a globally trusted brand, delivering high-performance injection molding machines backed by decades of innovation, reliability, and precision manufacturing.

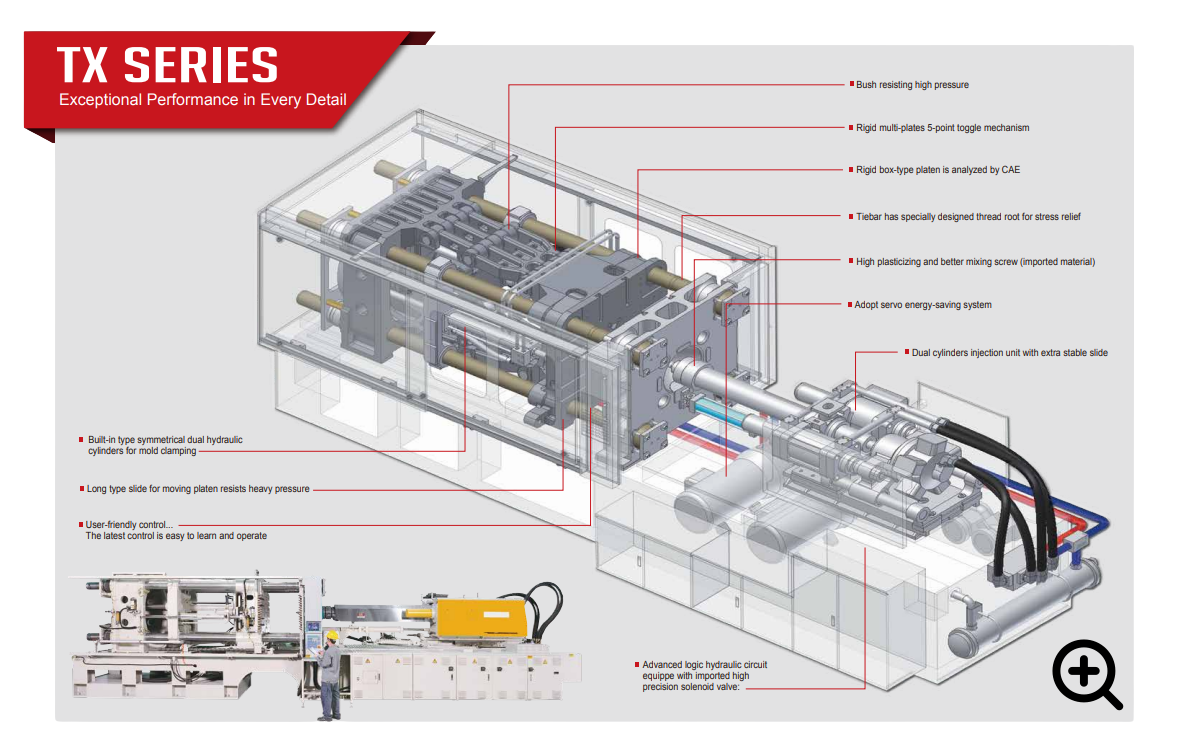

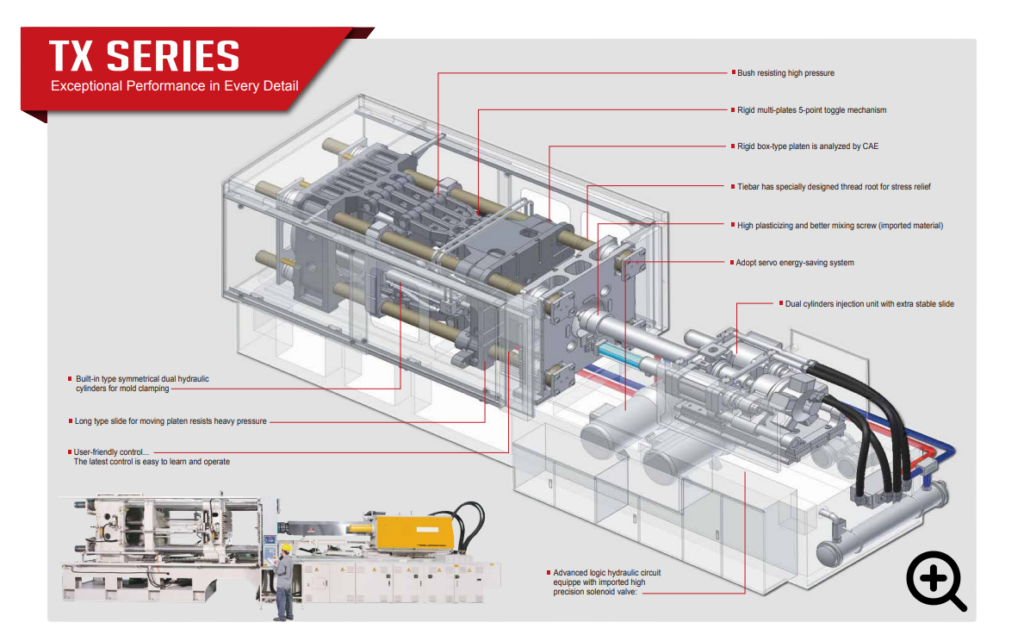

The optimized five-point internal toggle mechanism
and a 4-3-4-3 platen linkage design achieves high-speed
performance and high-rigidity characteristics.
The mold-locking cylinder is configured diagonally to
utilize factory space by reducing overall mold-locking
mechanism length.
The fixed moving platens adopt a box-type structural
design to increase the platen size and improve structural
rigidity.
The Japanese micro controller and a color LCD screen
feature a powerful function and easy-to-learn operations.
(Optional) The servo energy-saving system and high-
efficiency electric plasticizing system achieve energy savings
and carbon reduction.
IMS Services is a trusted injection moulding machine supplier in South Africa, offering quality plastic machinery backed by full engineering support.
With our in-house technical, we provide practical, hands-on support to keep your operations running smoothly.
| Model | Clamp Force (t) | Screw Diameter (mm) | Theoretical Inj. Vol. (cm) | Injection Pressure (kg/cm) | Injection Rate (cm/s) | Shot Weight (g) |
|---|---|---|---|---|---|---|
| CLF-60TX | 60 | 25 | 54 | 2520 | 52 | 49 |
| CLF-100TX | 100 | 30 | 148 | 2800 | 79 | 134 |
| CLF-120TX | 120 | 30 | 148 | 2800 | 79 | 134 |
| CLF-150TX | 150 | 40 | 307 | 2327 | 131 | 277 |
| CLF-180TX | 180 | 40 | 307 | 2327 | 131 | 277 |
| CLF-230TX | 230 | 45 | 429 | 2322 | 162 | 387 |

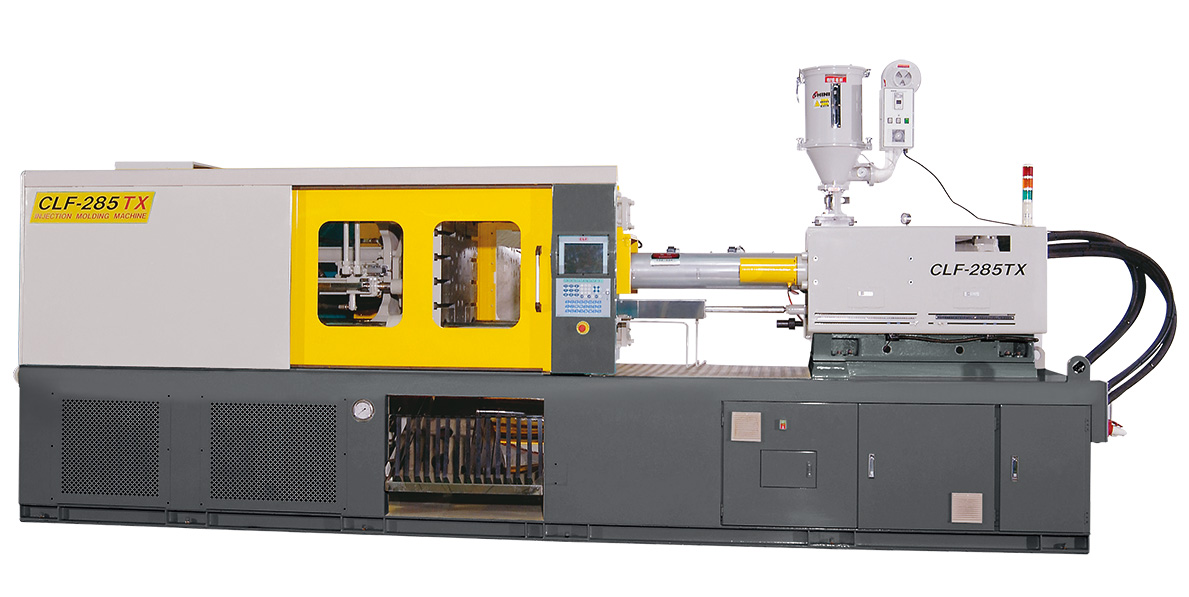

| CLF-285TX | 285 | 50 | 588 | 2500 | 175 | 531 |
| CLF-350TX | 350 | 55 | 712 | 2066 | 211 | 634 |
All cycle times and energy figures measured under standard thin-wall packaging conditions. Actual performance varies by mold design and processing parameters.
Core High Speed Injection Molding Machine Features
Five-Point Toggle Mechanism
Specially tuned motion profile locks and releases molds in milliseconds, enabling consistent sub-2 s dry-cycles.

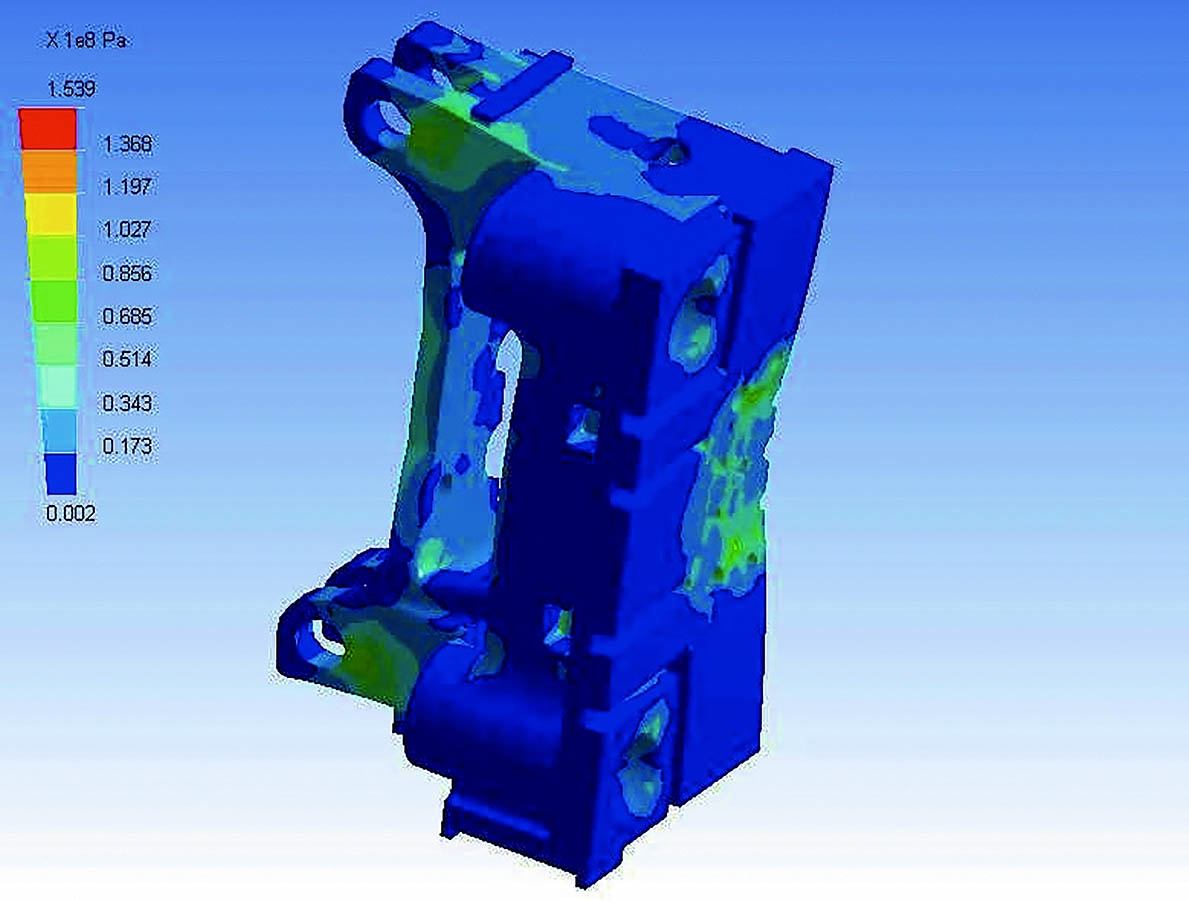

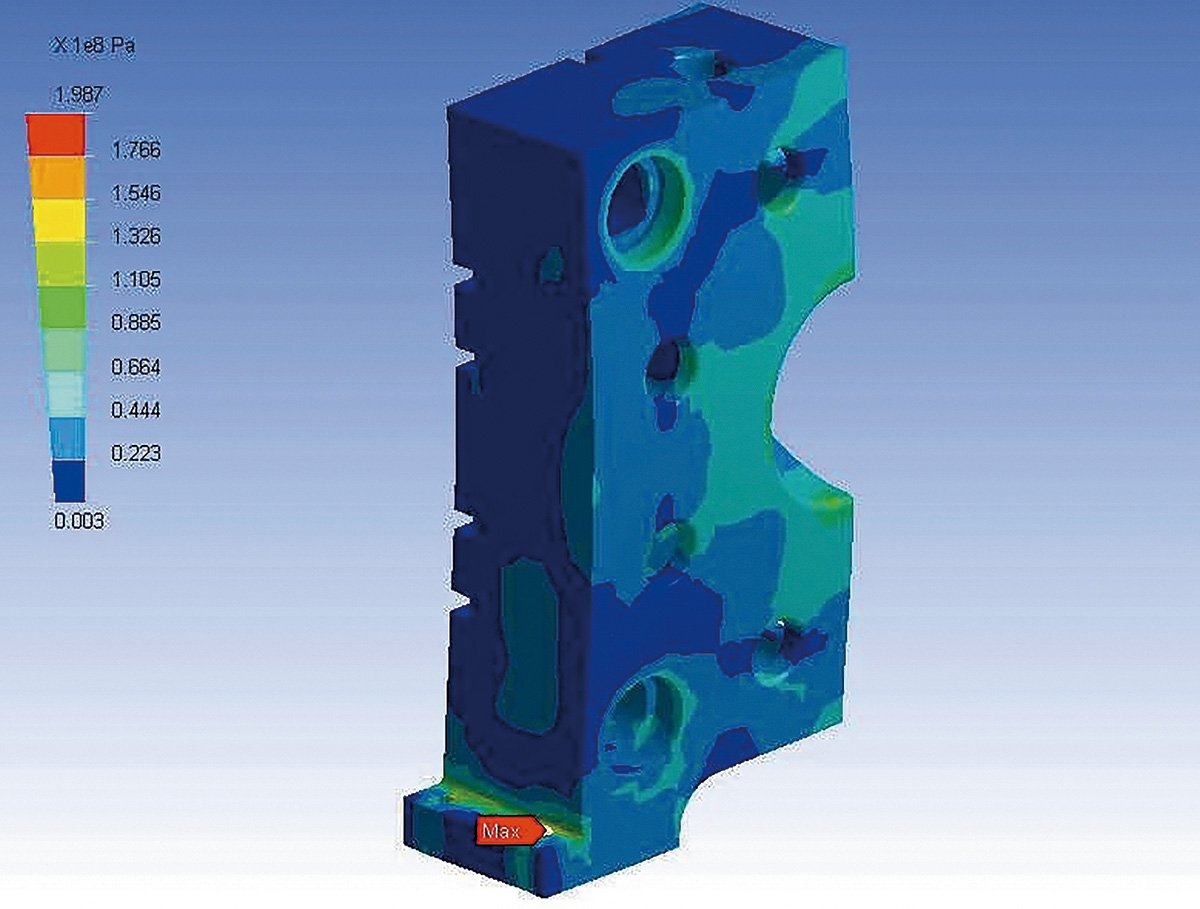

High-Stiffness Box-Frame Platens
FEA-validated design keeps deformation near zero under full clamp, eliminating flash on critical thin-wall parts.

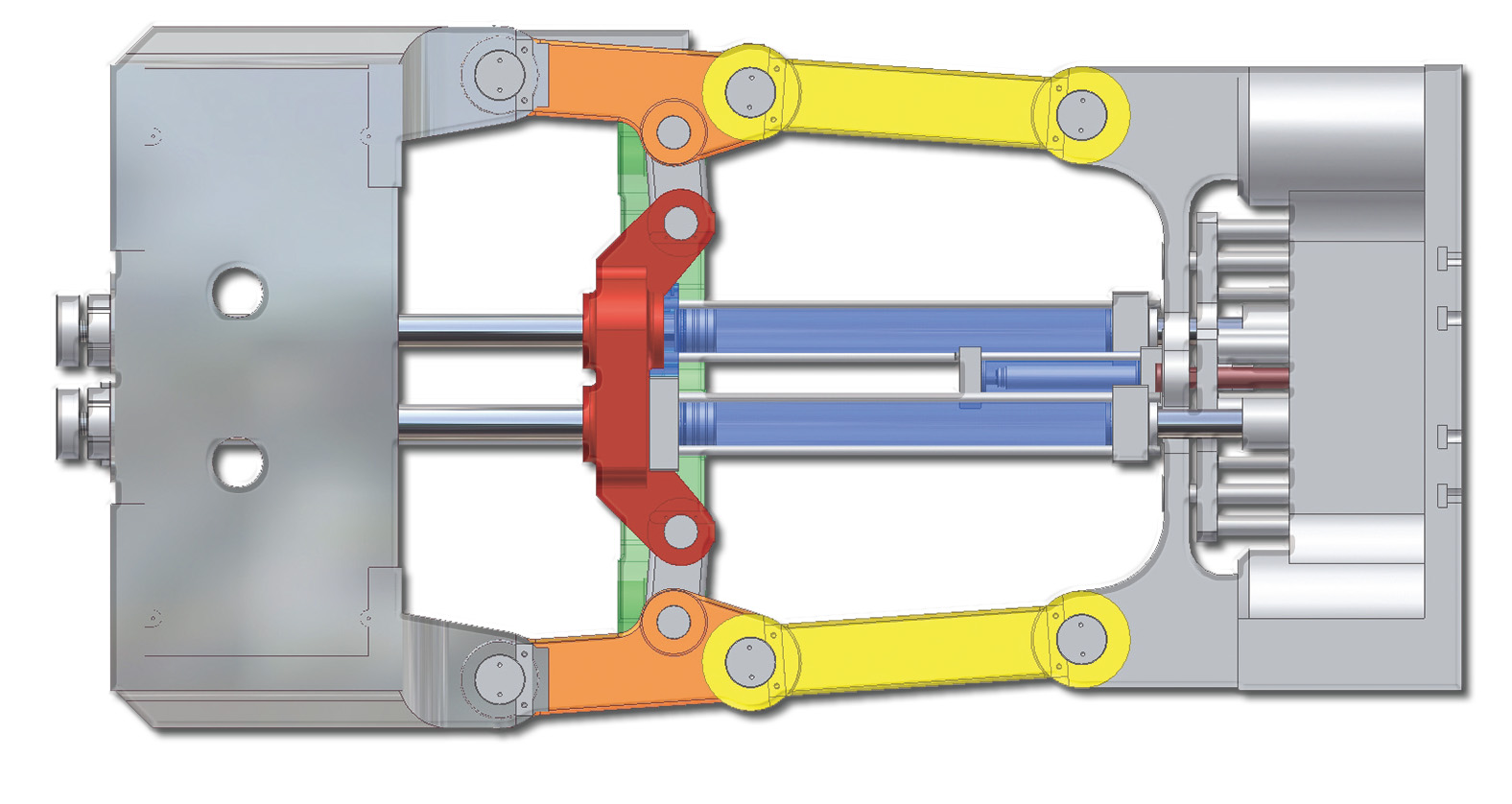

Diagonal Hydraulic Cylinders
Built-in diagonal layout on ≥ 400 t models shortens unit length by up to 20 %, freeing floor space.

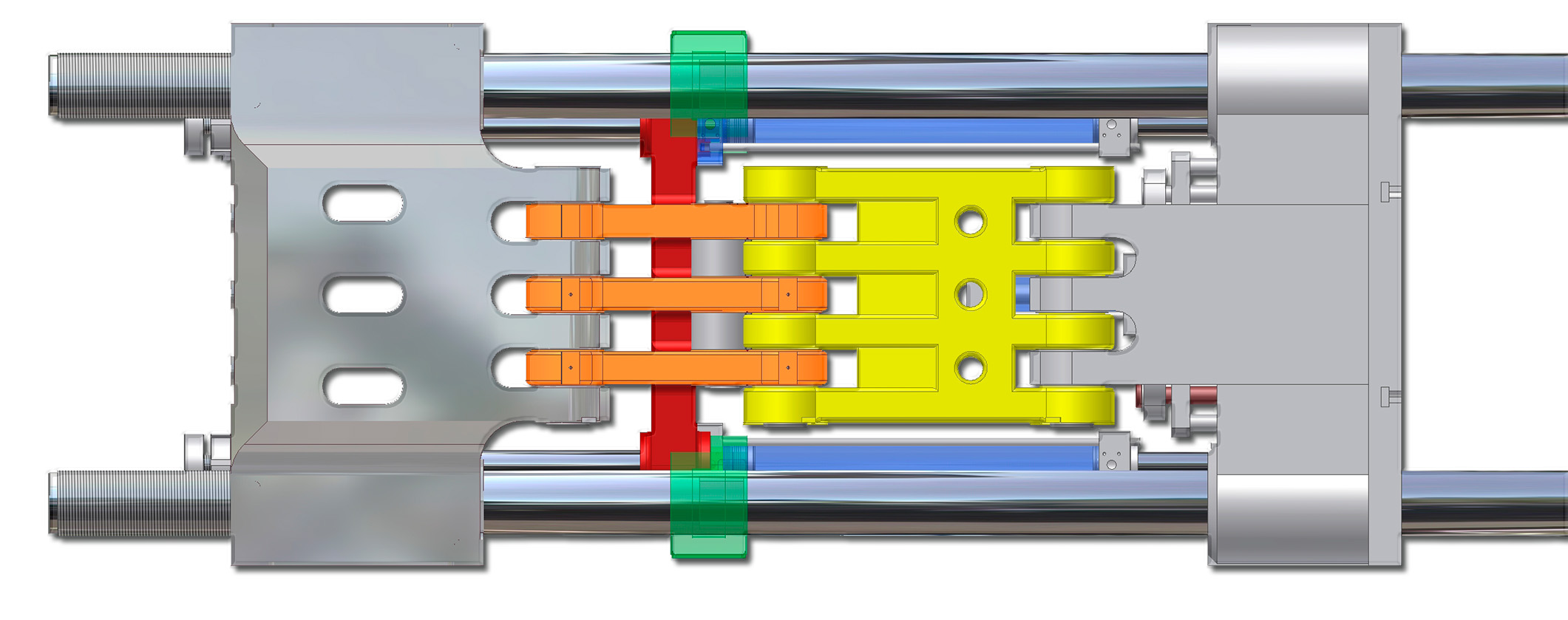

4-3-4-3 Toggle Plate Assembly
Robust multi-platen linkage balances clamp loads and extends toggle lifespan under heavy-tonnage use.
Accumulator-Backed Hybrid Drive
Kinetic-energy storage cushions power peaks, delivering rapid platen acceleration with minimal electricity draw.
Servo Electric Material Storage
Integrated electric hopper feed ensures precise, contamination-free resin delivery for uniform melt quality.

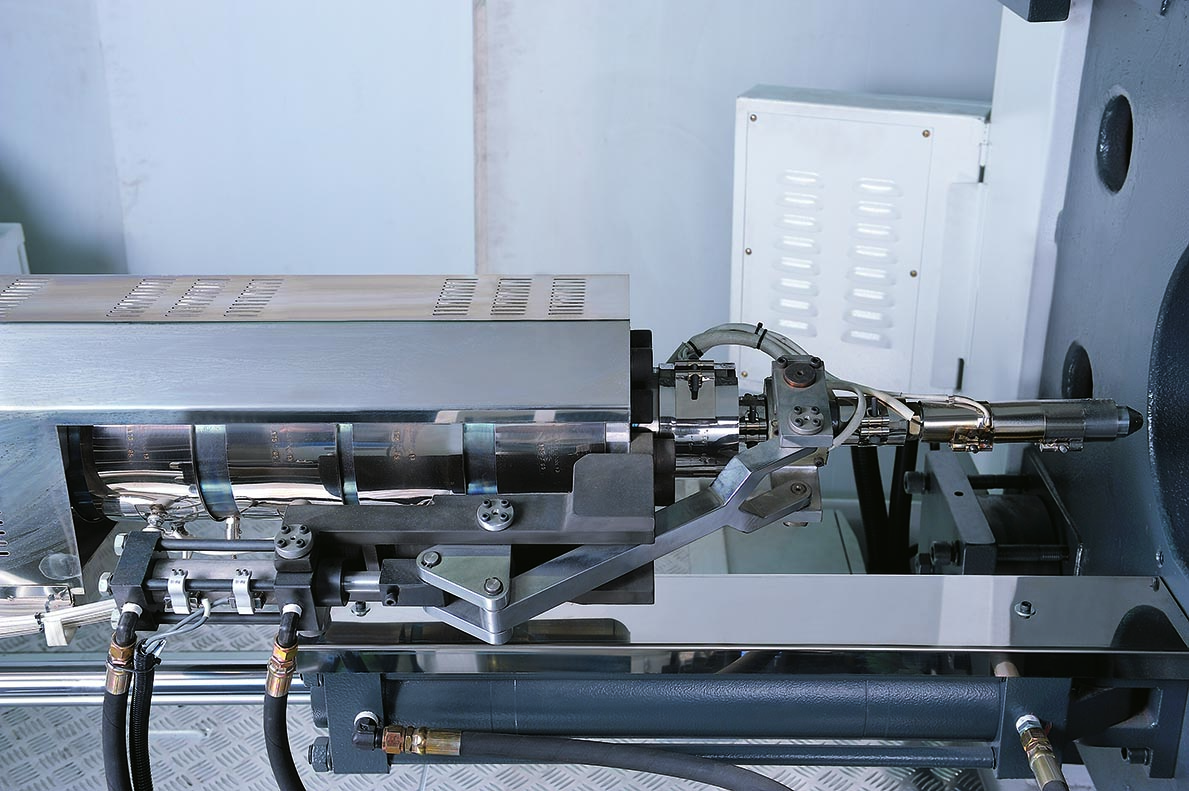

Sealed-Type Injection Unit
Fully enclosed barrel and nozzle guard against dust and contaminants, reducing maintenance points.

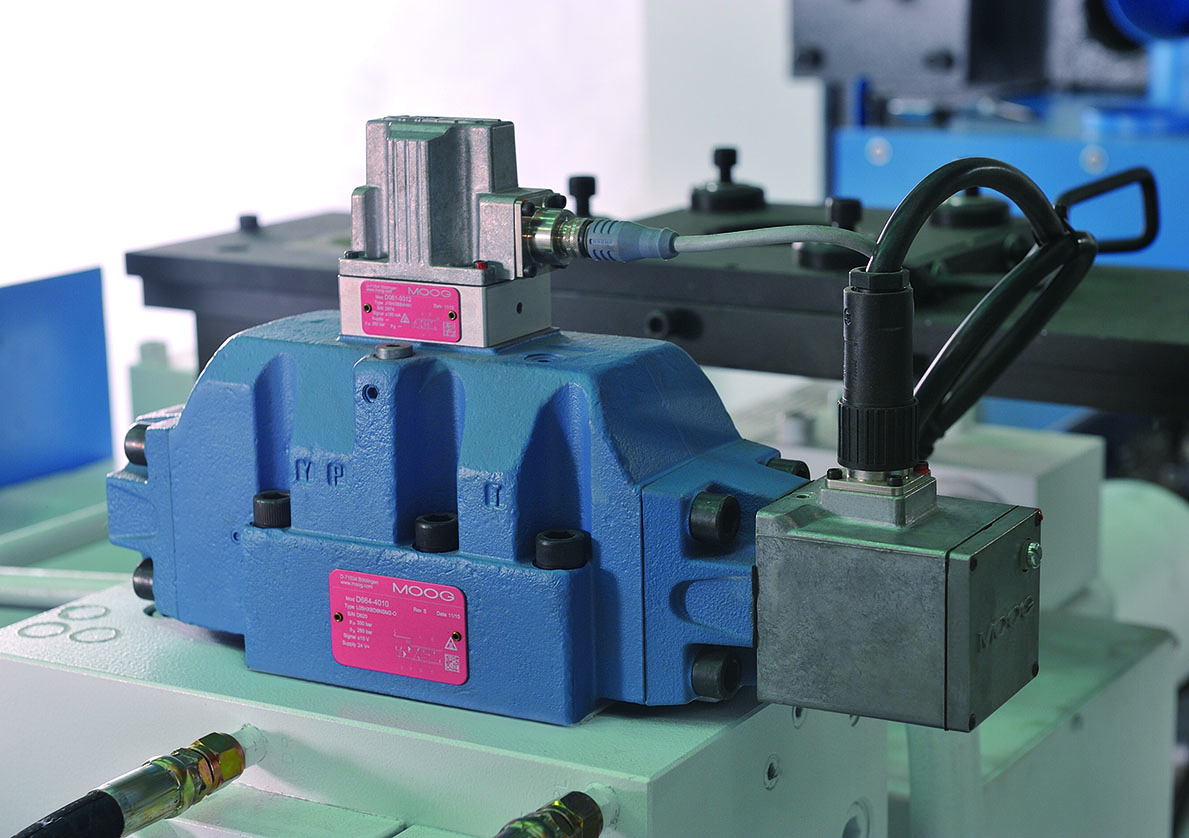

MOOG Servo Valves
Precision-engineered valves enable ultra-fine pressure control and repeatable shot-to-shot consistency.
Multi-Language KEBA Controller
Intuitive touchscreen UI toggles between Traditional/Simplified Chinese, English, Spanish, and more in seconds.
Why Manufacturers Choose CLF TX Series
Genuine Parts & Maintenance
On-site kits, remote di agnostics, and preventive-maintenance programs minimize downtime.
Thin-Wall Expertise
Purpose-built for packaging, medical, consumer electronics, and intricate multi-color components.
Automation-Ready Architecture
Modular platforms integrate IML cells, robots, conveyors, and IIoT monitoring with minimal rewiring.1
Frequently Asked Questions
- What exactly makes the TX Series “high speed”?
Rapid clamp-motion (< 2 s dry-cycle), injection speeds up to 1 400 mm/s, and optimized toggle kinematics for maximum shots with minimal energy. - Can I upgrade my existing presses?
Yes—CLF offers turnkey retrofit packages including servo-hydraulic drives, IML kits, and remote-monitoring modules that bolt onto most factory layouts. - How do I select the right tonnage?
Use our Clamp-Force Selector Tool or consult CLF’s applications engineers to match mold size, shot weight, and cycle-time goals. Or read more How to Calculate Injection Molding Tonnage : A Step-by-Step Guide.
